YAMAHA点胶机HSD-XG连轴器KV7-M8123-00X

No. Part No. Part Name Q'ty Remarks Date Revised No. Compatibility
1 KV6-M7113-12X NOZZLE 2 SHOT 1608 1 Type111
2 KV6-M7120-00X HEATER UNIT ASSY 1
2-1 KV6-M7120-10X HEATER UNIT ASSY 1 2000.02.15 M9Y0021 ok
3 KV6-M7114-01X JOINT,NOZZLE 1 IEI,MUSASHI 30cc,10cc
4 KU4-M7114-00X NUT,NOZZLE 1
5 KV6-M7102-00X PLATE 1,Z AXIS 1
6 KV6-M7103-00X PLATE 2,Z AXIS 1
7 KV6-M7104-00X PLATE 3,Z AXIS 1
8 KV6-M7105-00X GUIDE,LINEAR 1
9 KV6-M7107-00X STOPPER,Z AXIS 1
10 KV6-M7106-00X PLATE 4,Z AXIS 1
11 KV6-M7109-00X BRACKET,LOWER SENSOR 1
12 KV6-M7121-00X PLATE 1,R AXIS 1
13 KV6-M7122-00X HOLDER,BEARING 1
14 KV6-M7123-00X BEARING 1 1
15 KV6-M7124-00X PLATE 1,BRG. 1
16 KV6-M7125-01X SHAFT,NOZZLE 1
16-1 KV6-M7125-02X SHAFT,NOZZLE 1 2000.03.31 M030190 ok
17 KV6-M7128-00X PULLEY 1,R AXIS 1
17-1 KV6-M7128-01X PULLEY 1,R AXIS 1 2000.03.31 M030192 ok
18 KV6-M7129-00X BRACKET,ORG.SENSOR 1
19 KV6-M7131-00X SPLINE,BALL 1
20 KV6-M7132-00X SHAFT,R AXIS 1
21 KV6-M7135-00X COLLAR 1,R AXIS 1
22 KV6-M7136-00X BRG.1,R AXIS 2
22-1 90933-02J625 BEARING 2 2001.06.29 M160191 ok
23 KV6-M7137-00X BRG.2,R AXIS 2
24 KV6-M7138-00X COLLAR 2,R AXIS 1
25 KV6-M7139-00X COLLAR 3,R AXIS 1
26 KV6-M7141-00X SHAFT 1,TENSION 1
27 KV6-M7143-00X BRACKET,TENSION 1
28 KV6-M7144-00X BELT,R AXIS 1
29 KV6-M7145-00X BRG.1,TENSIONON 2
29-1 90933-02J106 BEARING 2 2001.06.29 M160192 ok
30 KV6-M7146-00X BRG.2,TENSIONON 2
30-1 90933-03J106 BEARING 2 2001.07.06 M170026 ok
31 KV6-M7147-01X HOLDER 2,BEARING 1
31-1 KV6-M7147-10X HOLDE 2,BEARING 1 2000.03.31 M030175 set
32 KV6-M7148-00X HOLDER 3,BEARING 1
32-1 KV6-M7168-10X STAY 1,HOLDER 2 1 2000.03.31 M030175 set
33 KV6-M7161-00X SHAFT 1,SPRING 1
34 KV6-M7162-00X SPRING,FROATING 1
35 KV7-M8103-00X Z AXIS ASSY 1

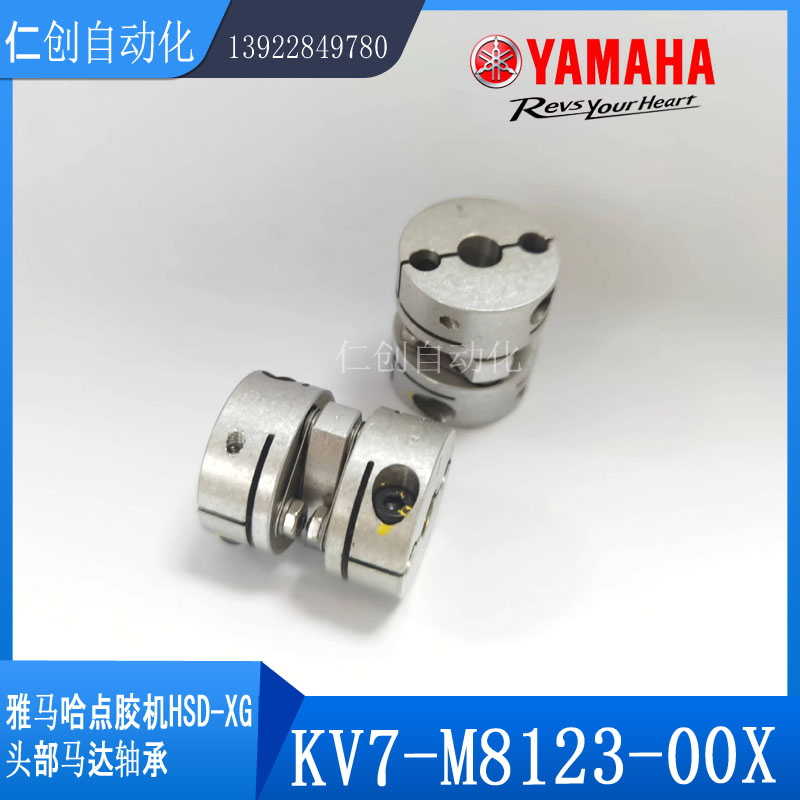

36 KV7-M8123-00X COUPLING,MOTOR 2
37 KV7-M8132-00X PULLEY,MOTOR R 1
38 KV6-M7171-10X VALVE ASSY 1
39 KM4-M7173-00X LOCATING PIN 7
40 KM1-M7127-00X SPRING POST 1
41 KV6-M655A-00X SENSOR,1-1 1
41-1 1 delete 2000.02.15 M9Y0021
42 KV6-M655B-00X SENSOR,1-2 1
43 KG2-M2284-00X SPG.MA
