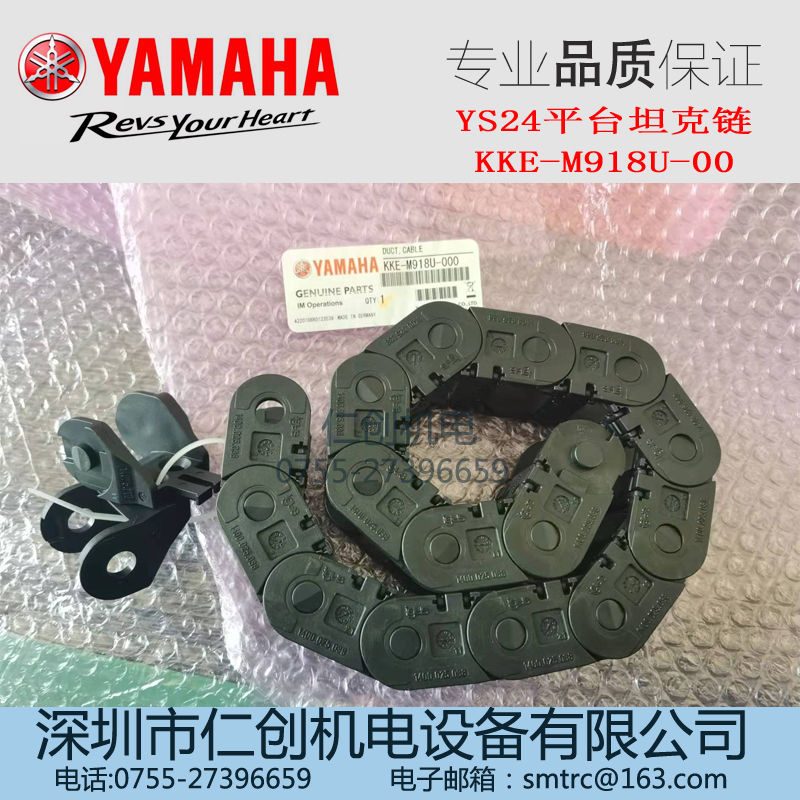

YS24平台坦克链
W轴
KKE-M918U-000 YS24 DUCT CLBLE
24 90K63-001144 AC SERVO MOTOR 1
25 90933-03J608 BEARING 8
26 90933-01J807 BEARING 4
27 91312-03006 BOLT HEX. SOCKET HEAD 6
28 91312-04012 BOLT HEX. SOCKET HEAD 26
29 91312-04014 BOLT HEX. SOCKET HEAD 32
30 91312-05008 BOLT HEX. SOCKET HEAD 8
31 91312-05030 BOLT HEX. SOCKET HEAD 4
32 91312-06012 BOLT HEX. SOCKET HEAD 2
33 91312-06020 BOLT HEX. SOCKET HEAD 4
34 91312-06025 BOLT HEX. SOCKET HEAD 8
35 KKE-M918M-10 COVER.1, CABLE 1 L>R
36 KKE-M918V-11 BRKT., W MOTOR 1 L>R
37 91312-04006 BOLT HEX. SOCKET HEAD 8
38 KKE-M9187-00 PLATE 3, GUIDE 2
39
KKE-M918S-01 COVER, DUCT 1 NG MFX0060-2009/11/26
KKE-M918S-00 COVER, DUCT 2
40 KKE-M918U-00 DUCT, CABLE 1
41 KKE-M9191-00 FRAME, CONVEYOR 1
42 KKE-M9192-00 PLATE 1, GUIDE 1
43
KKE-M919E-01 BRKT. 1, DUCT 1 NG MFX0060-2009/11/26
KKE-M919E-00 BRKT. 1, DUCT 1
44 KKE-M919F-00 DUCT, CABLE 1
45 KKE-M919H-00 BRKT. 3, DUCT 1
46 KKE-M919J-00 PLATE, SENSOR 2
47 KKE-M919K-00 PLATE, DOG 1
48 KKE-M919M-01 COVER, HNS. 1
49 KKE-M652M-10 SENSOR W2 ORG ASSY 1
50 KKE-M652N-00 SENSOR U2 ORG ASSY 1
51 90990-46J010 BOLT, THIN HEAD 2
52 91312-03005 BOLT HEX. SOCKET HEAD 4
53 91312-03008 BOLT HEX. SOCKET HEAD 5
54 91312-04006 BOLT HEX. SOCKET HEAD 4
55 91312-04008 BOLT HEX. SOCKET HEAD 1
56 91312-05010 BOLT HEX. SOCKET HEAD 3
57 91312-05012 BOLT HEX. SOCKET HEAD 12
58 92012-05010 BOLT, BUTTON HEAD 4
59 92902-05200 WASHER, PLAIN 10
60 92902-04600 WASHER, PLAIN 3
61 98702-03005 SCREW, FLAT HEAD 8
62 98702-06008 SCREW, FLAT HEAD 4
63
KKE-M919E-11 BRKT. 1, DUCT 1 L>R NG MFX0060-2009/11/26
KKE-M919E-10 BRKT. 1, DUCT 1 L>R
64 KKE-M919M-11 COVER, HNS. 1 L>R
65 91312-03010 BOLT HEX. SOC
