 YAMAHA贴片机配件 > 雅马哈常用配件 > YAMAHA贴片机YG200 R轴皮带 KGT-M7181-00X 齿轮角度皮带BELT
  • 产品编号:4315551016

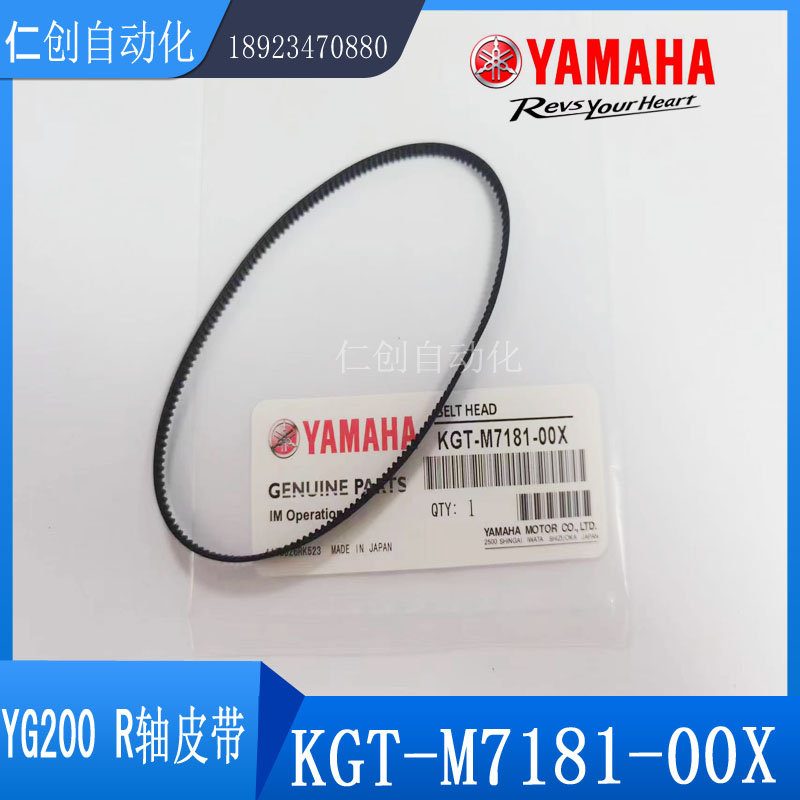

  • 产品名称:YAMAHA贴片机YG200 R轴皮带 KGT-M7181-00X 齿轮角度皮带BELT
  • 规  格:KGT-M7181-00X 252-1.5GT
  • 产品备注:252-1.5GT
  • 产品类别:YAMAHA贴片机配件
    产 品 说 明:
  • YAMAHA贴片机YG200 R轴皮带 KGT-M7181-00X 角度皮带BELT HEAD 252-1.5GT

    KGT-M7181-00X


    No. Part No. Part Name Q'ty Remarks Date Revised No.
    1 KGT-M7101-00X HOUSING, HEAD 1
    2 KV8-M7103-B0X PLUG ASSY. 3 H1, 3, 5
    3 90200-01J125 O-RING 3
    4 90990-22J003 PACKING 3
    5 KV8-M7103-10X PLUG 3
    6 KV8-M7103-C0X PLUG ASSY. 3 H2, 4, 6
    7 90200-01J125 O-RING 3
    8 90990-22J003 PACKING 3
    9 KV8-M7103-50X PLUG 3
    10 KV8-M7104-A0X PISTON ASSY. 6
    11 KV8-M7104-00X PISTON 6
    12 90990-22J006 PACKING 6
    13 90990-22J002 PACKING 12
    14 KGT-M712S-A0X S.T.D. SHAFT 1, SPARE 3 H1, 3, 5
    14-1 KGT-M712S-A1X S.T.D. SHAFT 1, SPARE 3 H1, 3, 5 2005.01.27 MB10071
    15 KV8-M71RJ-00X COLLAR, BRG 6
    16 KG7-M7137-A0X LEAF SPRING 12
    17 KG7-M7169-00X SCREW 12
    18 90990-28J002 WASHER PLAIN 12
    19 KGT-M7106-00X BALL SPLINE 6
    19-1 KGT-M7106-01X BALL SPLINE 6 2005.01.27 MB10071
    20 KV8-M7106-80X SPACER 6
    21 KGT-M7107-00X HOLDER, NOZZLE 6
    21-1 KGT-M7107-01X HOLDER, NOZZLE 6 2005.01.27 MB10071
    22 KV8-M7109-00X COLLAR 1, HEAD 3
    23 90933-03J128 BEARING 12
    24 KGT-M7167-00X PULLEY 6
    25 KV8-M7154-00X SPG. RETURN 6
    26 KV8-M7108-00X NUT 6
    27 92A08-03303 SET SCREW M3X3 12
    28 90933-02J604 BEARING 6
    29 90440-01J030 CIRCLIP 6
    30 KU1-M7152-00X WASHER 1 THURUST 6
    31 KGT-M713S-A0X STD. SHAFT 2, SPARE 3 H2, 4, 6
    32 KV8-M7110-00X COLLAR 2, HEAD 3
    33 KV8-M71R7-50X PLATE, BEARING 3
    34 KGT-M7111-00X PULLY, POST 1
    35 KV8-M7115-00X SHAFT 1, TENSION 2
    36 KGB-M7116-00X PULLY 2 1
    37 92A08-04305 SET SCREW M4X5 3
    38 KGT-M7117-00X BLOCK, ADJUST 1
    39 KV8-M7119-00X BLOCK, ADJUST 1
    40 KGT-M7166-00X PLATE, VALVE 1
    41 KGB-M71Y1-01X COLLAR 1, PULLEY 1
    42 90933-01J800 BEARING 2
    43 99009-10800 CIRCLIP (ISTW-10) 1
    44 KGT-M71Y9-50X BODY, CYLINDER 1
    45 91317-05006 BOLT HEX. SOCKET HEAD 6
    46 90990-22J005 PACKING 6
    47 KM1-M7105-A0X PLUG 2 ASSY 6
    48 KM1-M7105-00X PLUG 2 6
    49 90990-22J003 PACKING 6
    50 90200-01J125 O-RING 12
    51 KGT-M7112-00X STOPPER 1
    52 KGT-M7181-00X BELT, HEAD 2
    53 90933-03J128 BEARING 4
    54 90990-17J007 O-RING 6
    55 91317-03055 BOLT HEX. SOCKET HEAD 3
    56 90115-02J008 BOLT HEX. SOCKET HEAD 12
    57 $KM-05 MUFFLER 7
    58 $SLH8-01 JOINT 2
    59 $TSH6-01 JOINT 2
    60 90990-22J001 PACKING 18
    61 KGT-M7162-00X SOLENOID VALVE 1
    62 KGT-M7163-00X EJECTER, RESIN 1
    63 KGB-M7170-00X GEAR 1 1
    64 KGT-M7171-00X GEAR 2 1
    65 KGB-M7172-00X COLLAR 1, GEAR 1 R
    66 KGB-M7173-00X COLLAR 2, GEAR 1 L
    67 KGB-M7174-00X SHAFT, GEAR 1
    68 90933-02J085 BEARING 2
    69 KGT-M7179-00X COVER, GEAR 1 R
    70 KGT-M7179-10X COVER, GEAR 1 L
    71 KGB-M7185-00X PLATE 2, NUT 1
    72 KGB-M7184-00X BOLT HEXA. S. H 6
    73 KGT-M7183-00X PLATE, EJECTOR 1
    74 KGT-M7178-00X BRACKET 2, GEAR 1
    74-1 KGT-M71VB-00X BRACKET GEAR 1 2005.01.20 MB10079
    75 KGT-M7177-00X BRACKET 1, GEAR 1 R
    75-1 Delete 2005.01.20 MB10079
    76 KGT-M7177-10X BRACKET 1, GEAR 1 L
    76-1 Delete 2005.01.20 MB10079
    77 KGT-M71V4-00X BRACKET, MOTOR 1 R
    771 Delete 2005.01.20 MB10079
    78 KGT-M71V4-10X BRACKET, MOTOR 1 L
    78-1 Delete 2005.01.20 MB10079
    79 KGT-M71V5-00X HOLDER, PULLY 1 R
    79-1 Delete 2005.01.20 MB10079
    80 KGT-M71V5-10X HOLDER, PULLY 1 L
    80-1 Delete 2005.01.20 MB10079
    81 KV8-M71VS-00X COLLAR, SENSOR 12
    82 KGT-M653G-51X HNS, SENSOR, 4 ASSY 1 R 2004.01 M410007
    83 KGT-M653G-61X HNS, SENSOR, 4 ASSY 1 L 2004.01 M410007
    84 KGT-M654L-A0X SENSOR, DOWN 1 ASSY 3 H1, 3, 5
    85 KGT-M654M-A0X SENSOR, DOWN 2 ASSY 3 H2, 4, 6
    86 KGT-M654J-A0X SENSOR, HEAD ASSY 3
    86-1 KGT-M654J-A1X SENSOR, HEAD ASSY 3 2004.01.08 M410007
    87 KGT-M654K-A0X SENSOR, R ORG ASSY 1
    88 KM1-M4592-12X VAC SENSOR BOARD ASSY 6
    89 99480-04008 PIN, PARALLEL 8
    90 KGT-M71VC-00X HOLDER, PULLEY 1 R 2005.01.20 MB10079
    91 KGT-M71VC-10X HOLDER, PULLEY 1 L 2005.01.20 MB10079
    92 91317-04030 BOLT,HEX. S.H 4 M4X30 2006.10.02 MC90097
    93 91317-03022 BOLT,HEX. S.H
