 YAMAHA贴片机配件 > 雅马哈常用配件 > 雅马哈YSM20R贴片机X轴导轨拖链 坦克链KMK-M2267-00
  • 产品编号:1161343216

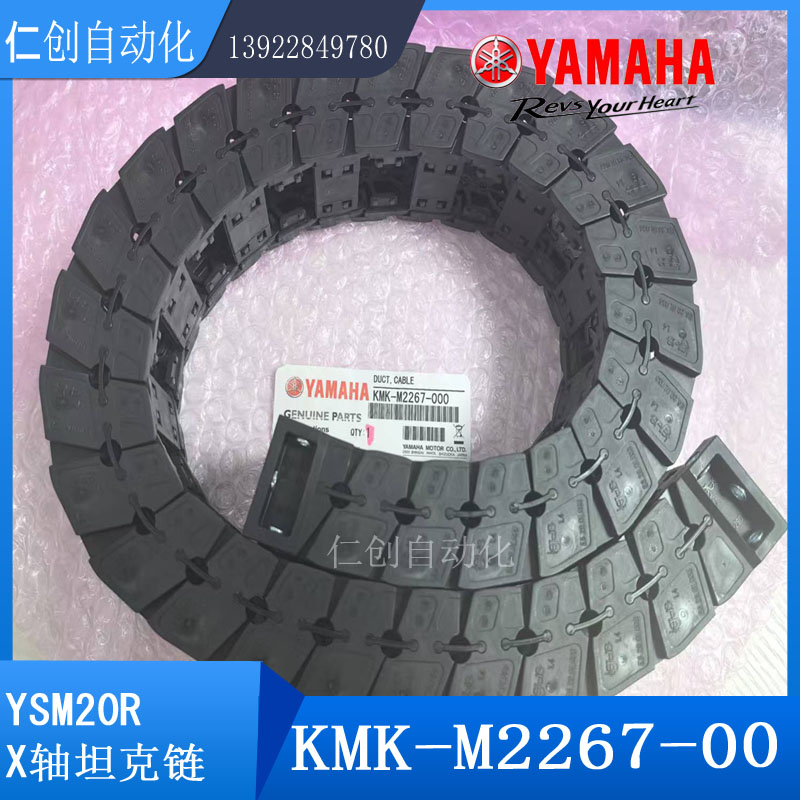

  • 产品名称:雅马哈YSM20R贴片机X轴导轨拖链 坦克链KMK-M2267-00
  • 规  格:KMK-M2267-00
  • 产品备注:
  • 产品类别:YAMAHA贴片机配件
    产 品 说 明:
  • 雅马哈YSM20R贴片机X轴导轨拖链 坦克链 YAMAHA YSM20R X DUCT,CABLE KMK-M2267-00

    NO Parts_No. Parts_Name Q_ty Remarks Compati Revision_No._date
    1 KHY-M2669-00 BRACKET,HARNESS 4 2 KLF-M4187-20 FAN GUARD 120MM 4 3 KLW-M2695-03 BRACKET,Y AXIS DUCT 2 4 KMK-M0213-00 Y CABLE DUCT ASSY. 2 5 KMK-M260B-00 TAPE,Y DUCT 1 2 6 KMK-M260C-00 TAPE,Y DUCT 2 2 7 KMK-M260D-00 TAPE,Y DUCT 3 2 8 KMK-M2678-00 DUCT,CABLE 2 9 KMK-M2698-00 BRIDGE,HNS. 2 10 KMK-M26F1-00 FRAME,1 2 11 KMK-M26F2-00 BRACKET,DUCT 2 12 KMK-M26F3-00 FRAME,L 2 13 KMK-M26F4-00 FRAME,R 2 14 KMK-M26F5-00 STAY,HNS.L 2 15 KMK-M26F6-00 BRKT.,CABLE 1 2 16 KMK-M26F7-00 BRKT.,FAN C1 2 17 KMK-M26F7-A0 COVER1 UPR.FAN ASSY. 1 18 KMK-M26F7-B0 COVER4 UPR.FAN ASSY. 1 19 KMK-M26F8-00 BRKT.,FAN C2 2 21 KMK-M26F8-B0 COVER3 UPR.FAN ASSY. 1 22 KMK-M26F9-00 SPACER,FAN 2 23 KMK-M6185-D0 FAN MOTOR ASSY 1 24 KMK-M6185-E0 FAN MOTOR ASSY 1 25 KMK-M6185-F0 FAN MOTOR ASSY 1 26 KMK-M6185-G0 FAN MOTOR ASSY 1 27 KV7-M2266-00 PLATE, NUT 4 28 $AUS10 JOINT 4 29 $CTAM1 ANCHOR MOUNT 20 30 $NK-3N NYLON CLIP 32 31 90990-01J032 BOLT HEX,SOCKET HEAD 16 32 91312-04008 BOLT HEX,SOCKET HEAD 22 33 91312-04010 BOLT HEX,SOCKET HEAD 8 34 91312-04035 BOLT HEX,SOCKET HEAD 16 35 91312-05010 BOLT HEX,SOCKET HEAD 39 36 91312-05012 BOLT HEX,SOCKET HEAD 6 37 91312-06012 BOLT HEX,SOCKET HEAD 8 38 97602-04305 SCREW PAN HEAD W/WASHER 32 39 97602-04308 SCREW PAN HEAD W/WASHER 20 40 98502-03005 SCREW PAN HEAD 8
