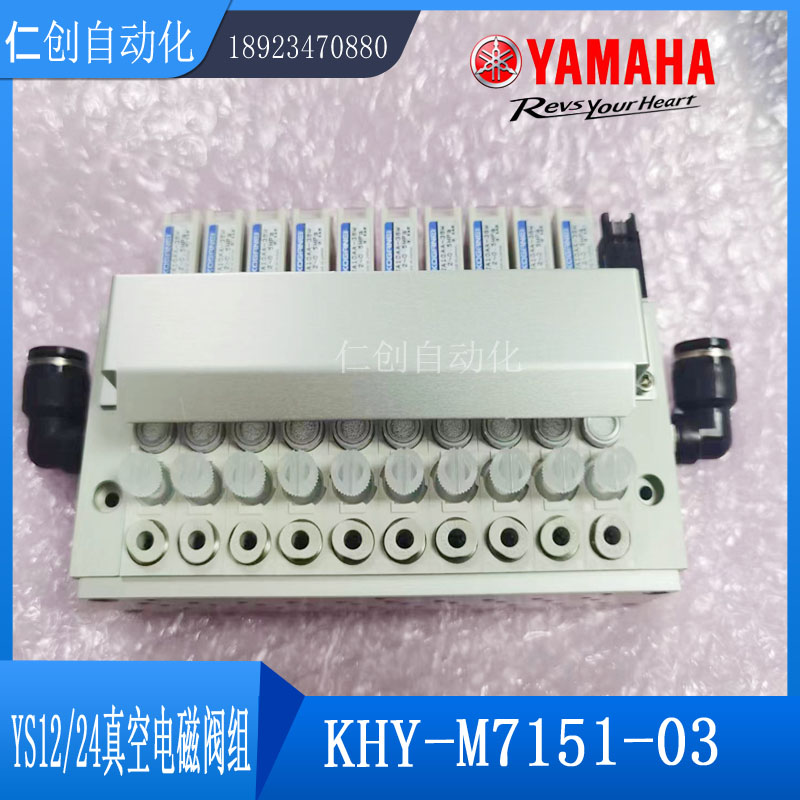

KHY-M7151-00X  ME05M10A-96W YG12/YS12电磁阀整组EJECTOR,RESIN  整套一共8组，深圳仁创机电13922849780

No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M7151-00 EJECTOR,RESIN 1
1-1 KHY-M7151-01 EJECTOR,RESIN 1 (2008/12/26) MEY0069 OK
2 KHY-M4592-01 VAC SENSOR BRD ASSY 1
3 KHY-M71CA-00 COVER,VAC SENSOR 1
4 $TL10-01 JOINT 2
5 90563-23J060 SPACER 4
6 91312-03005 BOLT HEX.SOCKET HEAD 6 M3X5
7 KHY-M7152-00 EJECTER 1
7-1 KHY-M7152-01 EJECTER 1 (2008/12/26) MEY0069 OK
8 KHY-M7153-00 VALVE 1
9 KHY-M7154-00 BIT 1
9-1 KHY-M7154-01 BIT 1 (2008/12/26) MEY0069 NG
10 KHY-M7155-00 FILTER CAP 1
11 KHY-M7156-00 BIT CAP 1
11-1 KHY-M7156-01 BIT CAP 1 (2008/12/26) MEY0069 OK
12 K46-M8527-C0 FILTER 1
13 90990-17J010 ORING 2
14 KHY-M71G5-A0 Z UNIT ASSY. 5
15 KHY-M71G5-A5 Z UNIT ASSY. 5
16 KHY-M71G1-00 SIDE PLATE,R 1
17 KHY-M71G2-00 SIDE PLATE,L 1
18 KHY-M71G3-00 SHAFT 1 2
19 KHY-M71G6-00 PLATE,HARNESS 1
20 KHY-M71H3-00 TAPE,Z-UNIT 1
21 90990-28J078 WASHER,PLAIN 4
22 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
23 91312-05014 BOLT HEX.SOCKET HEAD 8 M5X14
24 99480-04008 PIN,PARALLEL:4X8 2
25 90K41-000720 LABEL,ALERT 2
