您的位置:产品展示
 YAMAHA贴片机配件 > 吸嘴/吸嘴杆 > 雅马哈贴片机KG7-M7170-00X 90990-28J002吸嘴杆垫片
  • 产品编号:51016134216

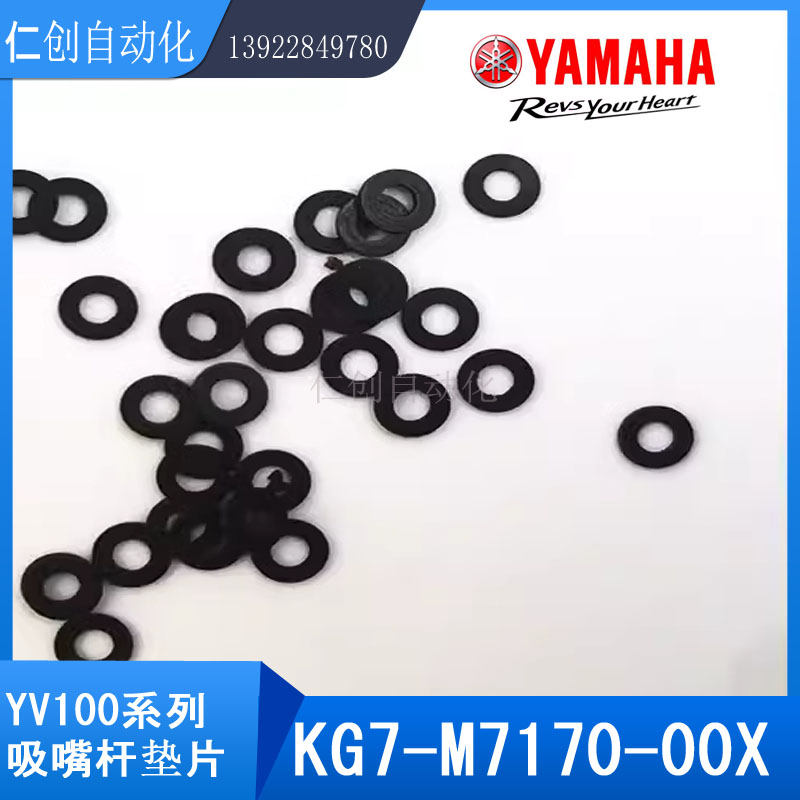

  • 产品名称:雅马哈贴片机KG7-M7170-00X 90990-28J002吸嘴杆垫片
  • 规  格:KG7-M7170-00X 90990-28J002
  • 产品备注:YAMAHA吸嘴杆通用
  • 产品类别:YAMAHA贴片机配件
    产 品 说 明:
  • KG7-M7170-00X 90990-28J002吸嘴杆垫片WASHER,深圳仁创机电0755-27396659,批发销售YAMAHA日本进口吸嘴杆,YAMAHA国产高仿吸嘴杆。货源充足,价格优势。


    No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
    1 KV8-M7101-00X HOUSING HEAD 1
    2 KG2-M7181-00X PACKING 28 MYA 4
    2-1 90990-22J001 PACKING 28 MYA 4
    3 KM1-M7140-00X PACKING 16 MYR-6
    3-1 90990-22J003 PACKING 16 MYR-6
    4 KM1-M7141-00X PACKING 20 MYA-10A
    4-1 90990-22J002 PACKING 20 MYA-10A
    5 KV8-M7103-00X PISTON PLUG 4
    6 KV8-M71Y5-00X PACKING 4 MYA-12.5
    6-1 90990-22J015 PACKING 4 MYA-12.5
    7 K65-M257M-00X O-RING 3 20 S12.5
    7-1 90200-01J125 O-RING 3 20 S12.5
    8 KV8-M7103-10X PLUG 4
    9 KV8-M7104-00X PISTON 8
    10 KM1-M7107-00X PACKING 8 LO43165
    10-1 90990-22J006 PACKING 8 LO43165
    11 KV8-M71VS-00X COLLAR, SENSOR 12
    12 KGB-M7184-00X BOLT, HEXA.S.H 7 M3X60
    13 KV8-M71RJ-00X COLLAR BRG. 4
    14 KG7-M7137-A0X LEAF SPRING 8
    15 KG7-M7169-00X SCREW 8
    16 KG7-M7170-00X WASHER 8
    16-1 90990-28J002 WASHER PLAIN 8 2003/3 M330113
    17 KV8-M7109-00X COLLAR 1 HEAD 4
    18 90933-03J128 BRG. 24 MF128ZZS
    19 KGB-M7167-00X PULLEY 8
    20 KV8-M7154-00X SPG.RETURN 4
    21 KV8-M7108-00X NUT 8
    22 90933-02J604 BRG. 8 604ZZ
    23 99001-03600 CIRCLIP 8
    23-1 90990-01J030 CIRCLIP 8 2001/12 M1Y0129
    24 KU1-M7152-00X WASHER 1 THURUST 8
    25 KV8-M7110-00X COLLAR 2 HEAD 4
    26 KV8-M71X2-00X SPG.RETURN 4
    27 KV8-M71X1-00X SPG.LOCATE 4
    28 KV8-M71R1-XXX SHAFT 1 SEL 4
    29 KV8-M71R2-01X BLOCK STOPPER
