 YAMAHA贴片机配件 > 雅马哈常用配件 > 雅马哈YSM10贴片机扫描相机配件镜片/玻璃片/反光片KMG-M78C0-00
  • 产品编号:4291110916
  • 产品名称:雅马哈YSM10贴片机扫描相机配件镜片/玻璃片/反光片KMG-M78C0-00
  • 规  格:KMG-M78C0-00
  • 产品备注:
  • 产品类别:YAMAHA贴片机配件
    产 品 说 明:

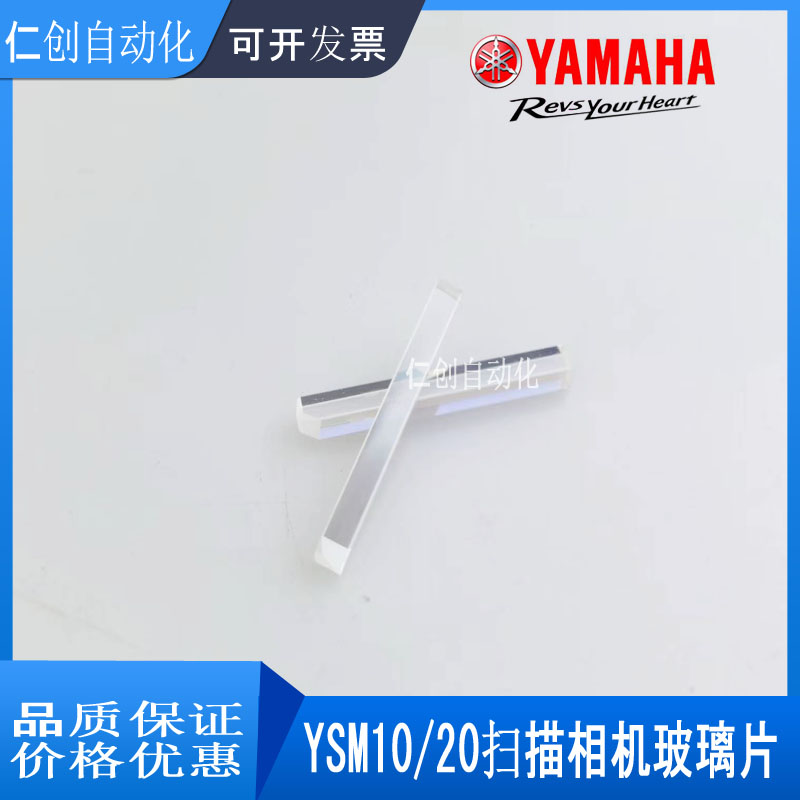

  • 雅马哈YSM10贴片机扫描相机配件镜片/玻璃片/反光片KMG-M78C0-00

    NO Parts_No. Parts_Name Q'ty Remarks Compati Revision_No._date
    1 KMG-M7850-00 SC MOTOR ASSY. 1 M43 : SC-axis
    2 KMG-M78C0-00 SCAN CAM. ASSY.,CX. 1
    3 KLW-M78H0-00 HNS.SCAN ASSY. 1
    4 KHY-M13D8-00 STICKER 1 head number guide sticker
    5 90K41-001400 LABEL,CAUTION 2 "Strong magnetic field" pictogram
    6 90K41-001330 LABEL,CAUTION 1 "Do not touch." message
    7 90K43-200580 LABEL,SERIAL 1 manufacturing serial number
    8 KMG-M7A13-00 DIFFUSER, MAIN 1
    9 KMG-M7A16-00 COVER,PRIZM 1
    10 KMG-M7A21-01 COVER,LIGHT 1
    11 KMG-M755S-00 SC.LIGHT BRD. SET 1
    12 KMG-M7A30-00 SIDE LIGHT ASSY. 1
    13 KMG-M7A31-00 BLOCK,LIGHT SIDE 1
    14 KHY-M7A34-01 DIFFUSER, SIDE 1
    15 KMG-M7905-00 SC.SV.LIGHT BRD ASSY 1
    16 90990-08J020 SCREW, PAN HEAD 3
    17 90990-28J002 WASHER,PLAIN 3
    18 KMG-M7A41-00 DIFFUSER,COAX. 2
    19 KMG-M78C2-00 AR SHEET 1
    20 KMG-M78C3-00 AR SHEET 1
    21 90K41-001320 LABEL,CAUTION 1 "Do not touch." pictogram
    22 KMG-M66N2-00 HNS,SCAN LIGHT 1 J0521 : SCAN
    23 90990-08J018 SCREW, PAN HEAD 8
    24 90990-08J020 SCREW, PAN HEAD 1
    25 90990-08J026 SCREW, PAN HEAD 4
    26 90990-55J001 CLAMP, CABLE 1
    27 90112-02J008 BOLT,HEX.SOCKET HEAD 2
    28 90112-2AJ005 BOLT,HEX.SOCKET HEAD 4
    29 98902-03006 SCREW, BINDING HEAD 1
    30 KLW-M78H1-00 PLATE,CABLE 1
    31 KLW-M78H2-00 BRACKET,CABLE 1
    32 KLW-M78H3-00 TAPE,SCAN CABLE 1
    33 KLW-M78H5-00 BRACKET,CONNECTOR 1
    34 KLW-M78H6-00 PLATE,CLAMP 1
    35 KLW-M78H7-00 COVER,SENSOR 1
    36 KLW-M78H8-00 CLAMP,CABLE 1
    37 KLW-M66JA-00 HNS,SCAN FLEX 1 J0511 : connected to [2]
    38 90172-00J030 WASHER,EXTL.TOOTHED 1
    39 90172-00J040 WASHER,EXTL.TOOTHED 1
    40 90990-01J106 BOLT,HEX.SOCKET HEAD 4
    41 90990-01J107 BOLT,HEX.SOCKET HEAD 4
    42 90990-11J001 SCREW, PAN HEAD W/W 2
    43 90990-11J006 SCREW, PAN HEAD W/W 1
    44 91312-03005 BOLT,HEX.SOCKET HEAD 2
    45 91312-03008 BOLT,HEX.SOCKET HEAD 6
    46 $NK-3N NYLON CLIP 1
    47 90K30-534006 HNS,EARTH 1 J0678 : connected to [2]
    48 KGS-M5184-00 SEAL,EARTH
