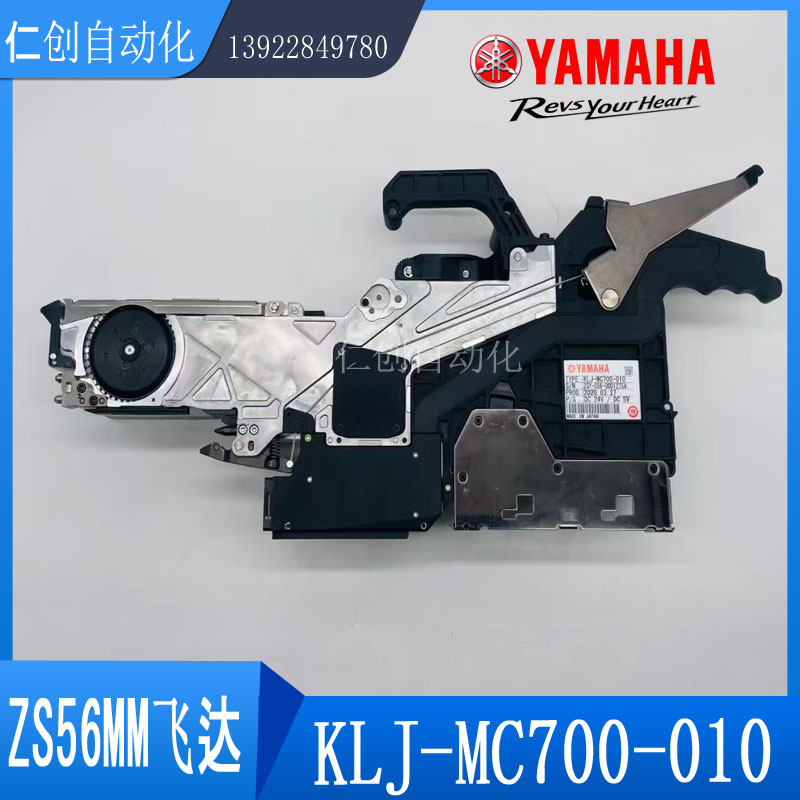

雅马哈电动飞达ZS56MM KLJ-MC700-010 FEEDER喂料器

KLJ-MC502-00 COVER,FEEDER 1 2 99480-03010 PIN,PARALLEL 5 3 91312-03022 BOLT HEX,SOCKET HEAD 6 4 91312-03012 BOLT HEX,SOCKET HEAD 2 5 KLJ-MC5ED-00 SPROCKET ASSY. L 1 6 KLJ-MC53G-00 SHAFT,GEAR DRIVEN 1 7 KLJ-MC2EH-00 BEARING 6-10 2 8 KLJ-MC53U-00 COLLAR,DRIVEN GEAR 2 9 KLJ-MC5EE-00 SPROCKET ASSY. R 1 10 KHJ-MC13E-01 SCREW,SLIM HEAD 2 11 KHJ-MC534-01 GEAR,IDLE F1 1 12 KLJ-MC5E2-00 GEAR,IDLE F2 ASSY. 1 13 KLJ-MC5E3-00 GEAR,IDLE F3 ASSY. 1 14 KLJ-MC53L-00 COVER,FEED GEAR 1 15 KLJ-MC53Y-00 COVER,FEED GEAR 2 1 16 90169-02JA04 SCREW, BINDING HEAD 2 17 KLJ-MC5E9-00 WAVE WASHER,D.G. 1 18 KHJ-MC251-00 GEAR,IDLE P1 1 19 KHJ-MC252-00 GEAR,IDLE P2 1 20 KHJ-MC253-00 GEAR,IDLE P3 1 21 KHJ-MC254-00 GEAR,IDLE P4 1 22 KHJ-MC556-00 ROLLER, PEEL OFF 1 1 23 KHJ-MC55A-00 SUB-ROLLER,1 2 24 KHJ-MC258-01 COVER,IDLE GEAR 1 1 25 KLJ-MC55E-00 COVER,IDLE GEAR 3 1 26 KLJ-MC566-00 BLOCK,P/O TOOTH 1 1 27 KHJ-MC46T-00 BOLT HEX.S/H LOW 2 28 KHJ-MC569-00 ROLLER,P/O 2 1 29 KHJ-MC56A-00 SHAFT,P/O LEVER 1 1 30 90440-01J030 CIRCLIP 1 31 90990-09J008 SCREW,FLAT HEAD 4 32 KLJ-MC5A2-00 COVER,BOX EL 1 33 98902-03005 SCREW BINDING HEAD 2 34 90115-2AJ008 BOLT HEX.SOCKET HEAD
