 YAMAHA贴片机配件 > 飞达/飞达配件 > 雅马哈贴片机YAMAHA电动飞达主板ZSR8MM KMV-M4488-00
  • 产品编号:121716495016

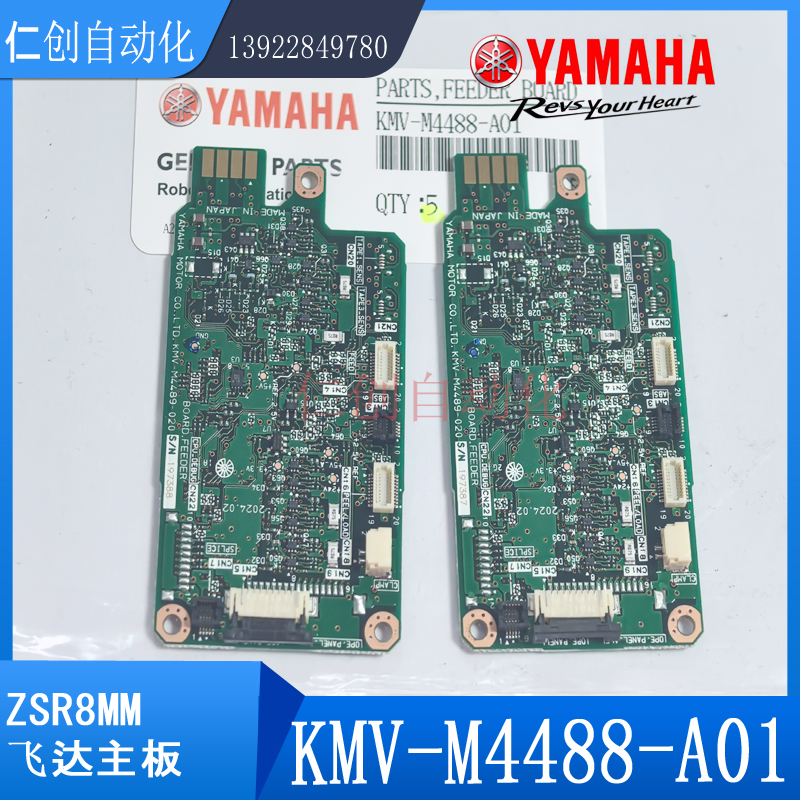

  • 产品名称:雅马哈贴片机YAMAHA电动飞达主板ZSR8MM KMV-M4488-00
  • 规  格:KMV-M4488-00
  • 产品备注:
  • 产品类别:YAMAHA贴片机配件
    产 品 说 明:
  • 雅马哈贴片机YAMAHA电动飞达主板ZSR8MM KMV-M4488-00  SS飞达主板KHJ-M4488-A01(老款)   SS飞达主板KHJ-M4488-B01(新款)  ZS款飞达主板KLJ-M4488-00


     KHJ-MC1A9-00 CONNECTOR,BOARD
    2 KLJ-MC1A5-00 DUMMY SPLICE SENSOR
    3 KMV-MC1A5-00 SPLICE SENS.8MM
    4 KLJ-MC1AA-00 SWITCH,OPERATION
    5 KLJ-MC1AL-00 SW,LIMIT
    6 KMV-M4488-A0 PARTS,FEEDER BOARD
    7 KMV-M4664-01 ABS BOARD ASSY.
    8 KMV-MC110-00 MOTOR,FEED
    9 KMV-MC120-00 MOTOR,PEEL
    10 KMV-MC167-00 COVER,MENBRANE
    11 KMV-MC1A4-00 COVER,ABS
    12 KMV-MC1A7-00 SCREW,PAN HEAD
    13 KMV-MC1AJ-00 NUT,PLATE
    14 90166-02JA03 SCREW, PAN HEAD
    15 90166-02JA06 SCREW, PAN HEAD
    16 90166-12JA06 SCREW, PAN HEAD WW
    17 90990-08J020 SCREW, PAN HEAD

    1KMV-MC161-00 BOX,TOP TAPE
    2 KMV-MC1BE-00 SPONGE,GUARD 1
    3 KMV-MC1BF-00 SPONGE,GUARD 2
    4 KMV-MC1BG-00 SPONGE.GUARD 3
    5 KMV-MC16X-00 T/T BOX SUB-ASSY.
    6 KHJ-MC165-00 MAGNET,TAIL
    7 KMV-MC16Y-S0 TOP TAPE BOX COMP.
    8 KMV-MC10C-S0 SEAL,MAIN LABEL
    9 KMV-MC160-S0 PARTS,TOP TAPE BOX
    10 KMV-MC1A1-00 BOX,EL
    11 91317-03008 BOLT,HEX.SOCKET HEAD
    12 98902-03008 SCREW,BINDING HEAD
    1 90200-22J035 O-RING
    2 90990-37J010 WASHER,BELLEVILLE
    3 KMV-MC11T-00 BOLT,LOCK S/H
    4 KMV-MC132-00 SPROCKET
    5KMV-MC13E-00 BOLT,GEAR DRIVEN
    ....
    6 KMV-MC13T-00 BOLT HEX.SOCKET HEAD
    7 KMV-MC13Y-00 COVER,FEED GEAR 2
    8KMV-MC159-00 COVER,IDLE GEAR 2
    9 KMV-MC15H-00 SHAFT,IDLE GEAR P2
    10 KMV-MC15M-00 P/O ROLLER 1 ASSY.
    11 KMV-MC15U-00 GEAR,IDLE P1 ASSY.
    12 KMV-MC166-00 BLOCK,P/O TOOTH 1
    13 KMV-MC1E0-00 D/G COMP.ASSY.
    14 KMV-MC1E1-00 GEAR,IDLE F1 ASSY.
    15 KMV-MC1E2-00 GEAR,IDLE F2 ASSY.
    16 KMV-MC1EN-00 GUIDE,SPROCKET
    17 90112-02J006 BOLT HEX,SOCKET HEAD
    1 KMV-MC181-00 HANDLE
    2 KMV-MC16V-00 P/O LEVER ASSY.
    3 KHJ-MC106-00 PLATE,UNDER
    4 KLJ-MC10W-00 FRONT BLOCK ASSY.
    5 KHJ-MC107-00 SHIM,FRONT BLOCK1
    6 KHJ-MC108-00 SHIM,FRONT BLOCK 2
    7 KHJ-MC10G-00 SHIM,FRONT BLOCK 3
    8 KHJ-MC10U-00 SHIM,FRONT BLOCK 4
    9 KHJ-MC10V-00 SHIM,FRONT BLOCK 5
    10 KHJ-MC109-00 SHIM,PLATE UNDER 1
    ..--..
    11 KHJ-MC10A-00 SHIM,PLATE UNDER 2
    12 KHJ-MC16E-00 SPRING,P/O LEVER
    13 KMV-MC168-00 LEVER,P/O
    14 KMV-MC169-00 ROLLER,P/O 2
    15 KMV-MC16A-00 SHAFT.P/O LEVER 1
    16 KMV-MC16B-00 SHAFT.P/O LEVER 2
    17 91317-03008 BOLT HEX,SOCKET HEAD
    18 98707-03006 SCREW,FLAT HEAD
    19 90990-66J005 SCREW,TRUSS HEAD



    18 90990-08J021 SCREW,STAD
    19 98902-03008 SCREW,BINDING HEAD
    20 KMV-MC10C-S0 SEAL.MAIN LABEL
