YS24 spcifications |
| 来自：仁创世纪 日期：2010/6/8 11:27:28 |
| |
|
Model Name |
YS24 |
|
Applicable PCB |
L50·x W50mm – L700·x W460mm |
|
Mounting Capability |
72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor) |
|
Mounting Accuracy |
+/-0.05mm (μ + 3σ), ·/-0.03mm (3σ) |
|
Applicable Components |
0402 – 32 x 32mm MAX (Height 6.5mm or less) |
|
Component Types |
120 types (Max./8mm wide tape reel conversion) |
|
Power Supply |
Three phase AC 200/208/220/240/380/400/416 V ±10% |
|
Air Supply Source |
0.45MPa |
|

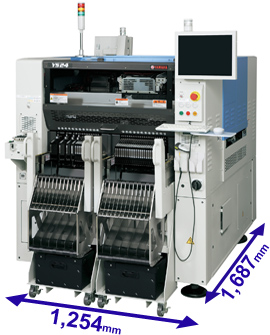

External Dimensions |
L1,254·x W1,687·x H1,445mm (Excluding protrusions) |
|
Weight |
Approx. 1,700kg |
|
| |
|
|
|
