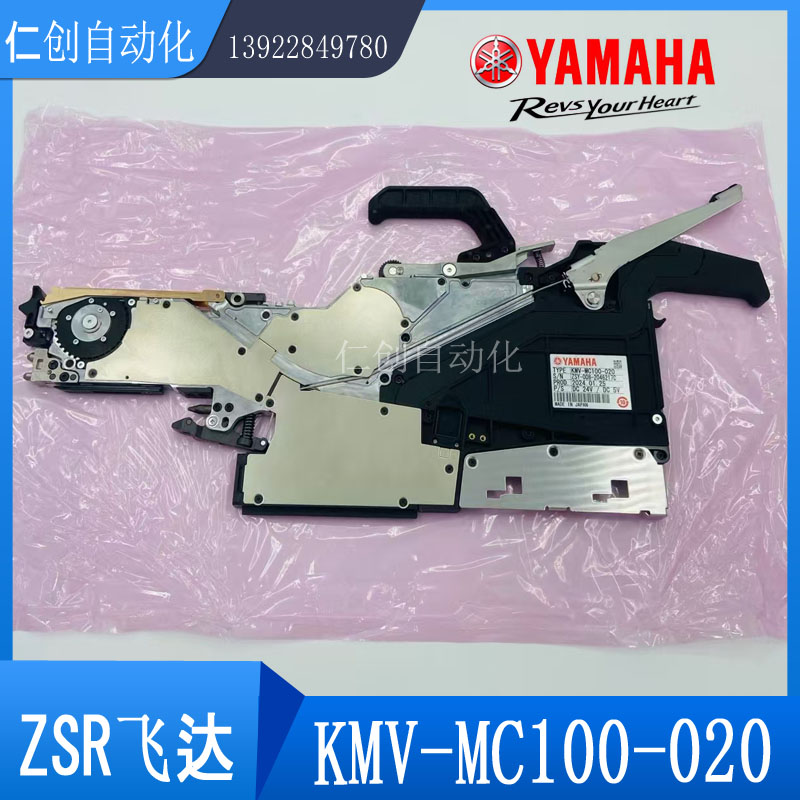

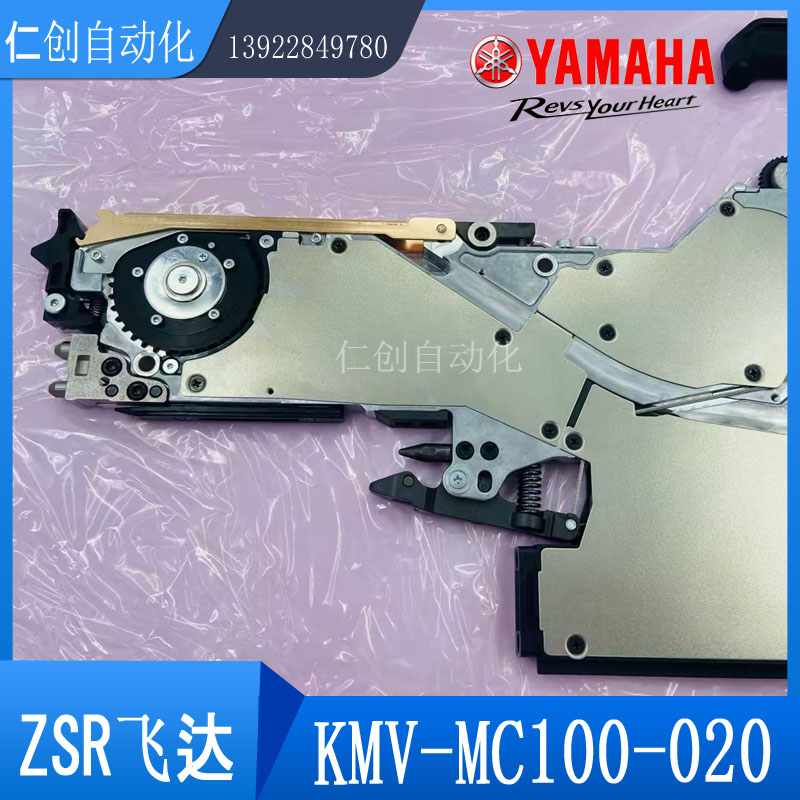

雅马哈电动飞达新款ZSR8MM KMV-MC100-020 YAMAHA喂料器FEEDER

1KLJ-MC1F2-00 WAVE WASHER, T.C.
2 KMV-MC102-00 COVER,FEEDER SIDE 1
3KMV-MC10C-S0 SEAL,MAIN LABEL
4 KMV-MC13L-00 COVER,FEED GEAR
5 KMV-MC158-00 COVER.IDLE GEAR 1
6KMV-MC162-S0 PARTS.BOX COVER
7 KMV-MC162-00 COVER,TOP TAPE BOX
8KMV-MC163-S0 PARTS,TAIL COVER
9KMV-MC16U-00 TAIL COVER ASSY.
10KMV-MC1A2-00 COVER,EL BOX
11 KMV-MC1F3-00 BRKT.,REEL HOLDER
12 KMV-MC1FX-00 SHAFT,TAIL COVER
13KMV-MC1FY-00 COLLAR,TAIL COVER
14 90115-2AJ006 BOLT, HEX. SOCKET HEAD
15 90990-09J008 SCREW, FLAT HEAD
.----
16 KLJ-MD901-00 REEL HOOK,8MM
6KHJ-MC189-01 PIN,CLAMP
7KHJ-MC18A-00 SPRING.CLAMP
8 KHJ-MC18J-00 SCREW,FLAT HEAD
9KMV-MC145-00 LEVER.TAPE GUIDE F
10 KMV-MC147-00 SPRING.TAPE GUIDE F
11 KMV-MC14E-00 SHAFT,LEVER
12KMV-MC183-00 SPACER.TENSION 1
13 KMV-MC184-00 SPACER,TENSION 2
14 KMV-MC186-00 WIRE,UNCLAMP
15 KMV-MC18B-00 COVER.WIRE 1
.-----
16 KMV-MC18H-00 CLAMP LEVER ASSY.
17 KMV-MC18X-00 LEVER,UNCLAMP COMP.
18 90115-2AJ006 BOLT, HEX. SOCKET HEAD
19 90440-01J060 CIRCLIP
20 91317-03008 BOLT HEX,SOCKET HEAD
21 92A08-03306 SCREW SET
1KMV-MC181-00 HANDLE
2KMV-MC16V-00 P/O LEVER ASSY.
3KHJ-MC106-00 PLATE.UNDER
4KLJ-MC10W-00 FRONT BLOCK ASSY.
5KHJ-MC107-00 SHIM,FRONT BLOCK 1
---
6KHJ-MC108-00 SHIM,FRONT BLOCK 2
7KHJ-MC10G-00 SHIM,FRONT BLOCK 3
8KHJ-MC10U-00 SHIM,FRONT BLOCK 4
9KHJ-MC10V-00 SHIM,FRONT BLOCK 5
10KHJ-MC109-00 SHIM.PLATE UNDER 1
_..
11 KHJ-MC10A-00 SHIM,PLATE UNDER 2
12 KHJ-MC16E-00 SPRING,P/O LEVER
13 KMV-MC168-00 LEVER,P/O
14KMV-MC169-00 ROLLER,P/O 2
15 KMV-MC16A-00 SHAFT,P/O LEVER 1
-----
16 KMV-MC16B-00 SHAFT,P/O LEVER 2
17 91317-03008 BOLT HEX,SOCKET HEAD
18 98707-03006 SCREW.FLAT HEAD
19 90990-66J005 SCREW.TRUSS HEAD
1 KLJ-MC1C3-00 SCREW
2 KLJ-MC14Y-00 PLATE,STOPPER
3KLJ-MC1C1-02 SPRING PLATE ASSY.
4 KLJ-MC1H1-00 COLLOR,STOPPER R
5KMV-MC141-00 TAPE GUIDE
6KMV-MC144-00 LEVER.TAPE GUIDE R
7KMV-MC146-00 SPRING,TAPE GUIDE R
8KMV-MC14C-00 SHAFT,GUIDE TAPE
990115-2AJ006 BOLT. HEX, SOCKET HEAD
10 91312-03006 BOLT HEX.SOCKET HEAD
11 KMV-MC14A-00 TAPE GUIDE,W8P1
12KMV-MC14B-00 TAPE GUIDE.W8P4
13 KLJ-MC1C1-B0 SPRING PLATE ASSY.
1 90200-22J035 O-RING
290990-37J010 WASHER,BELLEVILLE
3KMV-MC11T-00 BOLT,LOCK S/H
4 KMV-MC132-00 SPROCKET
5KMV-MC13E-00 BOLT,GEAR DRIVEN
-__-.---_
6KMV-MC13T-00 BOLT HEX.SOCKET HEAD
7KMV-MC13Y-00 COVER,FEED GEAR 2
8KMV-MC159-00 COVER,IDLE GEAR 2
9KMV-MC15H-00 SHAFT,IDLE GEAR P2
10KMV-MC15M-00 P/O ROLLER 1 ASSY.
11 KMV-MC15U-00 GEAR.IDLE P1 ASSY.
12 KMV-MC166-00 BLOCK,P/O TOOTH 1
13 KMV-MC1E0-00 D/G COMP. ASSY.
14KMV-MC1E1-00 GEAR,IDLE F1 ASSY.
15KMV-MC1E2-00 GEAR,IDLE F2 ASSY.
16KMV-MC1EN-00 GUIDE,SPROCKET
17 90112-02J006 BOLT HEX,SOCKET HEAD
1 KHJ-MC1A9-00 CONNECTOR,BOARD
2 KLJ-MC1A5-00 DUMMY SPLICE SENSOR
3KMV-MC1A5-00 SPLICE SENS.8MM
4 KLJ-MC1AA-00 SWITCH,OPERATION
5 KLJ-MC1AL-00 SW,LIMIT
6KMV-M4488-A0 PARTS,FEEDER BOARD
7KMV-M4664-01 ABS BOARD ASSY.
8KMV-MC110-00 MOTOR,FEED
9KMV-MC120-00 MOTOR,PEEL
10 KMV-MC167-00 COVER.MENBRANE
11 KMV-MC1A4-00 COVER,ABS
12 KMV-MC1A7-00 SCREW,PAN HEAD
13 KMV-MC1AJ-00 NUT,PLATE
14 90166-02JA03 SCREW, PAN HEAD
15 90166-02JA06 SCREW, PAN HEAD
16 90166-12JA06 SCREW, PAN HEAD W/W
17 90990-08J020 SCREW, PAN HEAD
18 90990-08J021 SCREW,STAD
19 98902-03008 SCREW,BINDING HEAD
20KMV-MC10C-S0 SEAL,MAIN LABEL
1KMV-MC161-00 BOX,TOP TAPE
2KMV-MC1BE-00 SPONGE,GUARD 1
3 KMV-MC1BF-00 SPONGE,GUARD 2
4KMV-MC1BG-00 SPONGE,GUARD 3
5KMV-MC16X-00 T/T BOX SUB-ASSY.
6KHJ-MC165-00 MAGNET,TAIL
7KMV-MC16Y-S0 TOP TAPE BOX COMP.
8KMV-MC10C-S0 SEAL,MAIN LABEL
9KMV-MC160-S0 PARTS,TOP TAPE BOX
10 KMV-MC1A1-00 BOX,EL
11 91317-03008 BOLT,HEX.SOCKET HEAD
12 98902-03008 SCREW,BINDING HEAD
